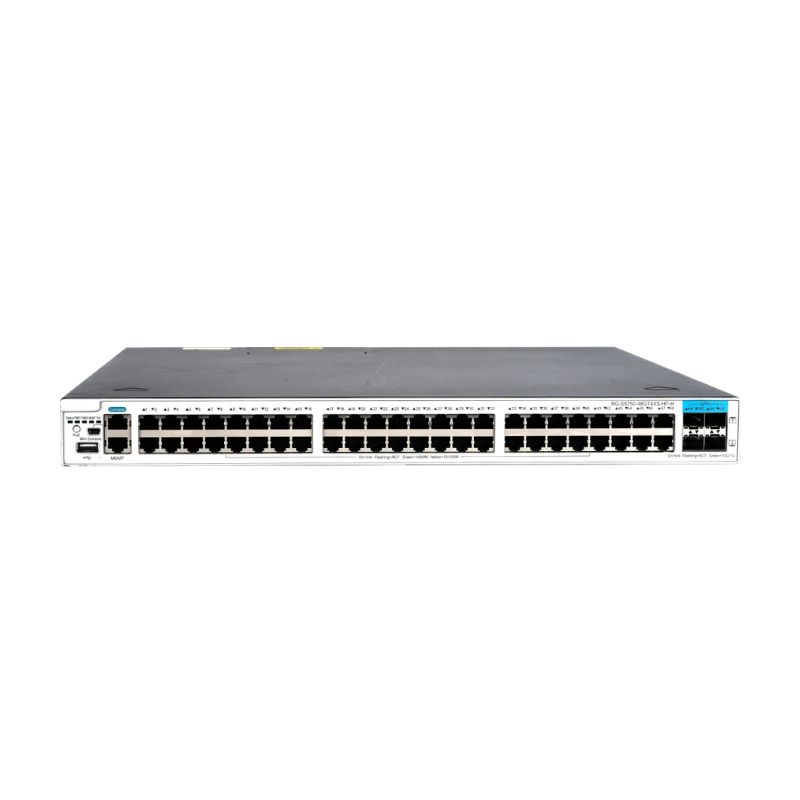

Switch Ruijie RG-S5750-48GT4XS-HP-H
Giá trên đã bao gồm VAT - Bảo hành 24 tháng
48 10/100/1000BASE-T PoE+ ports, 4 1G/10GBASE-X SFP+ ports, 2 modular power slots, required to purchase at least 1 power module
KHUYẾN MÃI
Chính sách bán hàng
- Sản phẩm chính hãng™ 100%
- Giá cạnh tranh nhất thị trường
- Tư vấn giải pháp, dự án miễn phí
- Hỗ trợ đại lý và dự án
- Đầy đủ CO/CQ
- Bán hàng online toàn quốc
- Hỗ trợ kỹ thuật tận tâm
- Bảo hành chuyên nghiệp, uy tín
Hỗ trợ trực tuyến
Mô tả sản phẩm
Thông số kỹ thuật
| Model | RG-S5750C-28SFP4XS-H |
| Fixed port | GE RJ45 port: 48 |
| 10GE SFP+ port: 4 | |
| Management port | ETH management port: 1 |
| Console port (RJ45): 1 | |
| Console port (Mini USB): 1 | |
| USB 2.0 port: 1 | |
| Performance | Switching capacity: 598Gbps/5.98Tbps |
| Forwarding rate: 132Mpps | |
| MAC table size: 64,000 | |
| ARP table size: 20,000 | |
| Jumbo frame: 9216 Bytes | |
| Packet buffer: 32Mbit | |
| Power over Ethernet | Maximum PoE power budget: 1480W (w/2 RGPA1150P-F) |
| PoE/PoE+ enabled port: 48 | |
| Standard: IEEE802.3af/at | |
| Physical | Dimensions (WxDxH): 440 x 420 x 44 mm/ 440 x 450 x 44mm w/ PGPA1150P-F |
| Unit weight: 6.1kg | |
| Power supply | – Type: Hot swappable |
| – Redundancy: 1+1 | |
| – AC frequency: 50/60Hz | |
| – Rated AC voltage: 100~240V | |
| – Maximum AC voltage: 90~264V | |
| – Rated HVDC voltage: 240V DC | |
| – Maximum HVDC voltage: 192~288V DC | |
| – Rated DC voltage: -36V ~ -72V DC | |
| – Maximum power rating: 2300W | |
| – Idle power rating: 70W | |
| Heat dissipation system | – Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment |
| – Number of fans: 3 | |
| – Airflow: Air flows in from the left and exhausts from the right | |
| Certifications | – Safety: EN 60960-1 |
| – EMC: EN 300 386 | |
| – Emissions: EN 55022, EN55032 | |
| – Immunity generic: EN 55024 | |
| – ESD: EN 61000-4-2 | |
| – Radiated: EN 61000-4-3 | |
| – EFT/Burst: EN 61000-4-4 | |
| – Surge: EN 61000-4-5 | |
| – Conducted: EN 61000-4-6 | |
| – Power frequency magnetic field: EN 61000-4-8 | |
| – Voltage dips and interruptions: EN 61000-4-11 | |
| – Harmonics: EN 61000-3-2 | |
| – Flicker: EN 61000-3-3 | |
| – Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) | |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
