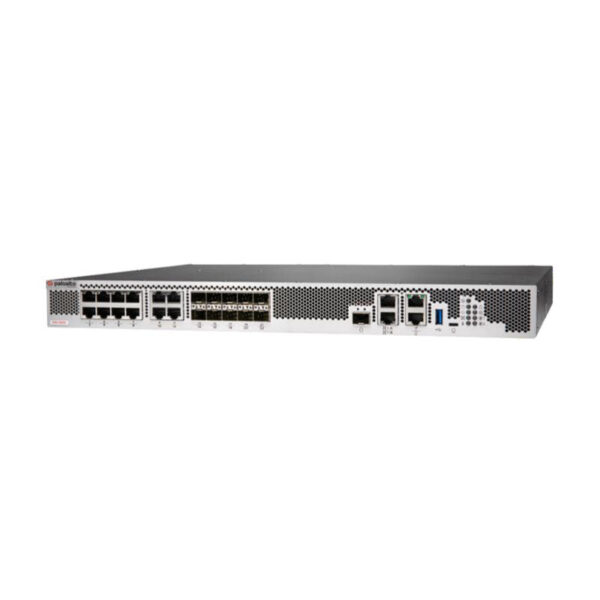

Firewall Palo Alto Networks PA-1410 (PAN-PA-1410)
Giá trên đã bao gồm VAT - Bảo hành 24 tháng
KHUYẾN MÃI
Chính sách bán hàng
- Sản phẩm chính hãng™ 100%
- Giá cạnh tranh nhất thị trường
- Tư vấn giải pháp, dự án miễn phí
- Hỗ trợ đại lý và dự án
- Đầy đủ CO/CQ
- Bán hàng online toàn quốc
- Hỗ trợ kỹ thuật tận tâm
- Bảo hành chuyên nghiệp, uy tín
Hỗ trợ trực tuyến
Mô tả sản phẩm
Thông số kỹ thuật
| Performance and Capacities | |
| Firewall throughput (HTTP/appmix) | 8.9/6.8 Gbps |
| Threat Prevention throughput (HTTP/appmix) | 3.3/3.2 Gbps |
| IPsec VPN throughput | 4.6 Gbps |
| Max sessions | 945,000 |
| New sessions per second | 100,000 |
| Virtual systems (base/max) | 1/6 |
| nterface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | – OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing |
| – Policy-based forwarding | |
| – Point-to-Point Protocol over Ethernet (PPPoE) | |
| – Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 | |
| SD-WAN | – Path quality measurement (jitter, packet loss, latency) |
| – Initial path selection (PBF) | |
| – Dynamic path change | |
| IPv6 | – L2, L3, tap, virtual wire (transparent mode) |
| – Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption | |
| – SLAAC | |
| IPsec VPN | – Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) |
| – Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) | |
| – Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 | |
| VLANs | – 802.1Q VLAN tags per device/per interface: 4,094/4,094 |
| – Aggregate interfaces (802.3ad), LACP | |
| Network Address Translation | – NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) |
| – NAT64, NPTv6 | |
| – Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription | |
| High Availability | – Modes: active/active, active/passive |
| – Failure detection: path monitoring, interface monitoring | |
| Zero Touch Provisioning (ZTP) | Requires Panorama 9.1.3 or higher that is managing PA-1400 Series with PAN-OS 11.0 or higher |
| Hardware Specifications | |
| Ports | 10/100/1000 (8), 1G/2.5G/5G (4)/PoE, 1G SFP (6), 1G/10G SFP/SFP+ (4) |
| Management I/O | – 10/100/1000 out-of-band management port (1) |
| – HSCI 10 gigabit high availability (1) | |
| – RJ-45 console port (1) | |
| – USB port (1) | |
| – Micro USB console port (1) | |
| Power over Ethernet (PoE) | Total PoE Power Budget: 151W, Maximum load on single port: 90W |
| Storage Capacity | 120 GB SSD |
| Power Supply (Avg/Max Power Consumption) | AC 450W power supply (1); Optional for purchase 2nd AC 450W power supply (1) |
| Power Consumption (Avg/Max) | 50 W/290 W |
| Mean Time Before Failure (MTBF) | 24 Years |
| Input Voltage (Input Frequency) | 100–240 VAC (50–60 Hz) |
| Rack Mount Dimensions | 1U, 19″ standard rack (1.70″ H x 14.15″ D x 17.15″ W) |
| Weight (Standalone Device/As Shipped) | 15.5 lbs |
| Safety | cTUVus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Environment | – Operating temperature: 0°C to 40°C at 10,000 feet |
| – Non-operating temperature: -4°F to 158°F; -20°C to 70°C | |
| Airflow | Front to back |
