Bộ phát wifi Ruijie RG-AP180P-L
Giá trên đã bao gồm VAT - Bảo hành 24 tháng
KHUYẾN MÃI
Chính sách bán hàng
- Sản phẩm chính hãng™ 100%
- Giá cạnh tranh nhất thị trường
- Tư vấn giải pháp, dự án miễn phí
- Hỗ trợ đại lý và dự án
- Đầy đủ CO/CQ
- Bán hàng online toàn quốc
- Hỗ trợ kỹ thuật tận tâm
- Bảo hành chuyên nghiệp, uy tín
Hỗ trợ trực tuyến
Mô tả sản phẩm
Thông số kỹ thuật
| Model | RG-AP180-I |
| Radio | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
| Operating Frequencies | Radio 1: 802.11b/g/n/ax, 2.400 GHz–2.483 GHz Radio 2: 802.11a/n/ac/ax, 5.150 GHz–5.350 GHz, 5.470 GHz–5.725 GHz, 5.725 GHz–5.850 GHz Note: The operating bands vary in different countries. |
| Data rates | Radio 1: 2.4 GHz, 575 Mbps Radio 2: 5 GHz, 2.4 Gbps Maximum access rate of the AP: 2.4 GHz+5 GHz, 2.975 Gbps |
| Antenna type | Built-in intelligent antenna (two 2.4 GHz antennas and two 5 GHz antennas) |
| Antenna gain | 2.4 GHz: 3 dBi 5 GHz: 3 dBi |

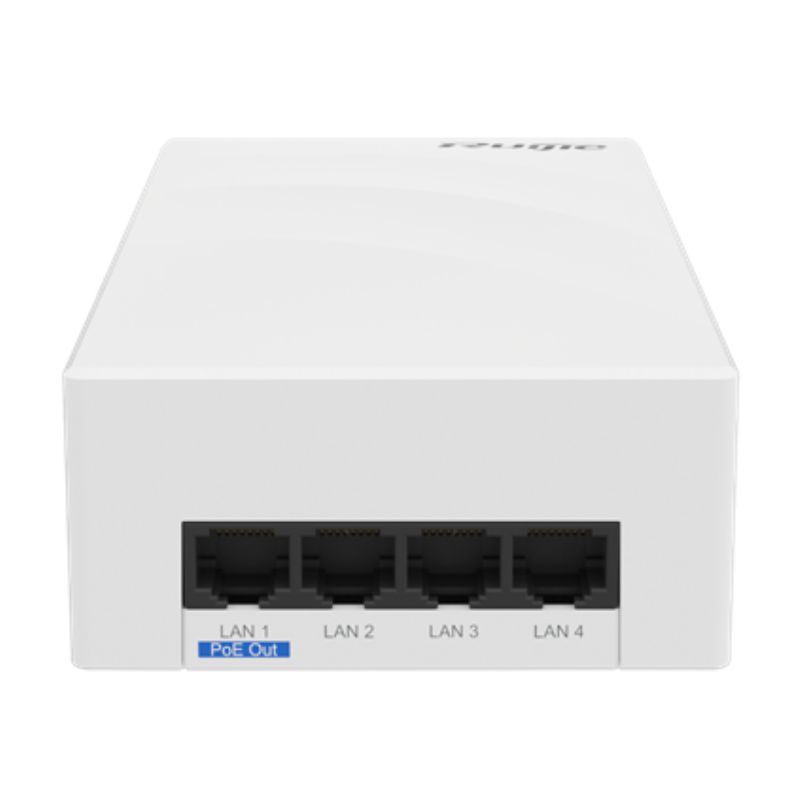

| Port | Uplink: 1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard (PoE/PoE+). Downlink: 4 x 10/100/1000Base-T Ethernet ports with auto-negotiation |
| Antenna | Wi-Fi ● 2.4 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi. ● 5 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 2 dBi. |
| Status LED | One power LED |
| Power Supply | ● 12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over the PoE-in port: The power source equipment (PSE) complies with the IEEE 802.3af standard. The IEEE 802.3at (PoE+) standard is backward compatible with the IEEE 802.3af (PoE) standard. Note: ● When powered by 802.3at (PoE+), the AP operates with the optimal performance. |
| Power Supply | Max power consumption: 10 W ● DC powered: 10 W ● PoE powered (802.3af): 10 W ● Idle mode: 3.3 W |
| Installation Mode | Installed in 86-type and concealed boxes of the American and European standards or on a wall |
| Dimensions (W x D x H) | 170 mm × 86 mm × 43 mm |
| Weight | Main unit: 0.3 kg Mounting plate: 0.1 kg |
| MTBF | 200,000 hours (22 years) |
| Temperature | 0°C to 40°C |
Thông số kỹ thuật
| Model | RG-AP180-I |
| Radio | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
| Operating Frequencies | Radio 1: 802.11b/g/n/ax, 2.400 GHz–2.483 GHz Radio 2: 802.11a/n/ac/ax, 5.150 GHz–5.350 GHz, 5.470 GHz–5.725 GHz, 5.725 GHz–5.850 GHz Note: The operating bands vary in different countries. |
| Data rates | Radio 1: 2.4 GHz, 575 Mbps Radio 2: 5 GHz, 2.4 Gbps Maximum access rate of the AP: 2.4 GHz+5 GHz, 2.975 Gbps |
| Antenna type | Built-in intelligent antenna (two 2.4 GHz antennas and two 5 GHz antennas) |
| Antenna gain | 2.4 GHz: 3 dBi 5 GHz: 3 dBi |
| Port | Uplink: 1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard (PoE/PoE+). Downlink: 4 x 10/100/1000Base-T Ethernet ports with auto-negotiation |
| Antenna | Wi-Fi ● 2.4 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi. ● 5 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 2 dBi. |
| Status LED | One power LED |
| Power Supply | ● 12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over the PoE-in port: The power source equipment (PSE) complies with the IEEE 802.3af standard. The IEEE 802.3at (PoE+) standard is backward compatible with the IEEE 802.3af (PoE) standard. Note: ● When powered by 802.3at (PoE+), the AP operates with the optimal performance. |
| Power Supply | Max power consumption: 10 W ● DC powered: 10 W ● PoE powered (802.3af): 10 W ● Idle mode: 3.3 W |
| Installation Mode | Installed in 86-type and concealed boxes of the American and European standards or on a wall |
| Dimensions (W x D x H) | 170 mm × 86 mm × 43 mm |
| Weight | Main unit: 0.3 kg Mounting plate: 0.1 kg |
| MTBF | 200,000 hours (22 years) |
| Temperature | 0°C to 40°C |
